Mitsui High-tec


Shown with optional accessories

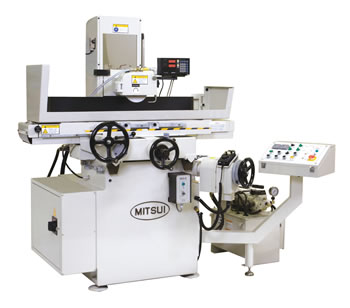

Model MSG-250HMD

Mitsui Fully Automatic Precision Grinder

  • Download Catalogue

    Mitsui Model Number 250HMD is the only machine in its class that was SUCCESSFULLY manufactured not only for large part grinding, but also for small tight tolerance work as well. Stack the chuck for production work and be amazed at the overall accuracy across the entire surface.

    CONSTRUCTION
    Extremely heavy iron castings, internal rib reinforced. Our meahanite casting base uses jack bolts and plates for a 5 point leveling system. Another feature, which is a trademark with the Mitsui Design, is the ease in removal and replacement of key components, providing for "No Hassle" maintenance which translates to minimum down time and cost.

    PRECISION
    Not all surface grinder manufacturers can attest to precision the way we do. Our cartridge spindle is second to none and REMOVABLE. The carriage/saddle moving on (2) 45 "Vees" combined with the table moving on Linear Ball Bearings make for the repeatability for which MITSUI is known. NO design compromises here.

    DURABILITY Precision by design means little if it can not be maintained. MITSUI provides the durability for this with D-2 hardened and ground steel ways on the table, Carriage/Saddle and even on the column for vertical movement. The linear ball bearings complement the table/carriage union with durability. The cartridge spindle's lubrication is sealed in for life and the dust sealed out. The Standard Automatic Lubricating System leaves you 1 less task to worry about, as it lubricates ALL vital components automatically to insure minimal wear and friction.
